TReTotal Recovery Premium
Energy Recovery Ventilators
.webp)
Model Features
- More efficient EC motor
- Speed controllable high-speed boost mode
- Low voltage percentage timer and point of use controls
- Individual airstream balancing capability
- Integral test ports
- Suitable for residential and light commercial applications
- Can be mounted in any orientation
- MERV 13 filters are available
- HVI Certified
- cETLus Listed
- Ecowatt®
Model Overview
Total Recovery Premium, TRe, is the latest edition to S&P USA's line of Energy Recovery Ventilators. TRe can be used in any orientation and features an EC motor for great energy efficiency. Utilize TRe for any residential or light commercial project by individually balancing each airstream to account for variations of duct run lengths.
10-year core warranty, 5-year unit warranty
TRe90 Airflow Performance Data
| Airflow (CFM) |
External Static Pressure (inches w.g.) |
Temperature EFF% |
Total EFF% Winter |
Total EFF% Summer |
| Max. Speed | ||||
| 138 | 0.1 | 62 | 58 | 36 |
| 131 | 0.2 | 64 | 59 | 38 |
| 125 | 0.3 | 65 | 61 | 49 |
| 119 | 0.4 | 66 | 62 | 41 |
| 112 | 0.5 | 67 | 63 | 43 |
| 106 | 0.6 | 68 | 65 | 45 |
| 97 | 0.7 | 70 | 67 | 48 |
| 91 | 0.8 | 71 | 68 | 49 |
| 83 | 0.9 | 73 | 70 | 51 |
| 74 | 1.0 | 75 | 71 | 54 |
| 56 | 1.2 | 78 | 75 | 59 |
| 35 | 1.4 | 82 | 80 | 65 |
| Min. Speed | ||||
| 28 | 0.1 | 83 | 81 | 67 |
| 13 | 0.2 | 86 | 85 | 71 |
TRe200 Airflow Performance Data
| Airflow (CFM) |
External Static Pressure (inches w.g.) |
Temperature EFF% |
Total EFF% Winter |
Total EFF% Summer |
| Max. Speed | ||||
| 233 | 0.1 | 58 | 49 | 26 |
| 225 | 0.2 | 59 | 50 | 27 |
| 216 | 0.3 | 60 | 51 | 28 |
| 210 | 0.4 | 61 | 52 | 30 |
| 201 | 0.5 | 62 | 53 | 32 |
| 193 | 0.6 | 63 | 54 | 34 |
| 184 | 0.7 | 64 | 56 | 36 |
| 176 | 0.8 | 66 | 57 | 38 |
| 163 | 0.9 | 67 | 59 | 40 |
| 150 | 1.0 | 69 | 61 | 42 |
| 117 | 1.2 | 73 | 67 | 49 |
| 86 | 1.4 | 77 | 72 | 56 |
| 48 | 1.6 | 82 | 78 | 63 |
| Min. Speed | ||||
| 18 | 0.1 | 86 | 84 | 71 |
TRe300 Airflow Performance Data
| Airflow (CFM) |
External Static Pressure (inches w.g.) |
Temperature EFF% |
Total EFF% Winter |
Total EFF% Summer |
| Max. Speed | ||||
| 288 | 0.1 | 71 | 63 | 45 |
| 280 | 0.2 | 71 | 64 | 46 |
| 269 | 0.3 | 72 | 65 | 47 |
| 261 | 0.4 | 72 | 65 | 48 |
| 252 | 0.5 | 73 | 66 | 49 |
| 244 | 0.6 | 73 | 67 | 50 |
| 233 | 0.7 | 74 | 68 | 51 |
| 222 | 0.8 | 75 | 69 | 52 |
| 212 | 0.9 | 75 | 69 | 53 |
| 199 | 1.0 | 76 | 70 | 54 |
| 170 | 1.2 | 78 | 73 | 57 |
| 136 | 1.4 | 80 | 75 | 60 |
| 93 | 1.6 | 83 | 79 | 64 |
| 36 | 1.8 | 86 | 83 | 69 |
| Min. Speed | ||||
| 67 | 0.1 | 85 | 81 | 67 |
| 36 | 0.2 | 86 | 83 | 69 |

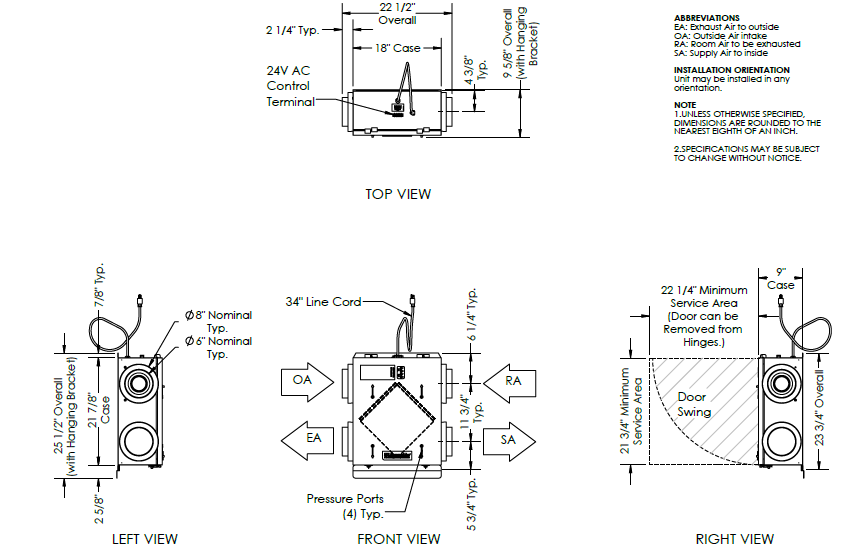

Dimensions for TRe90

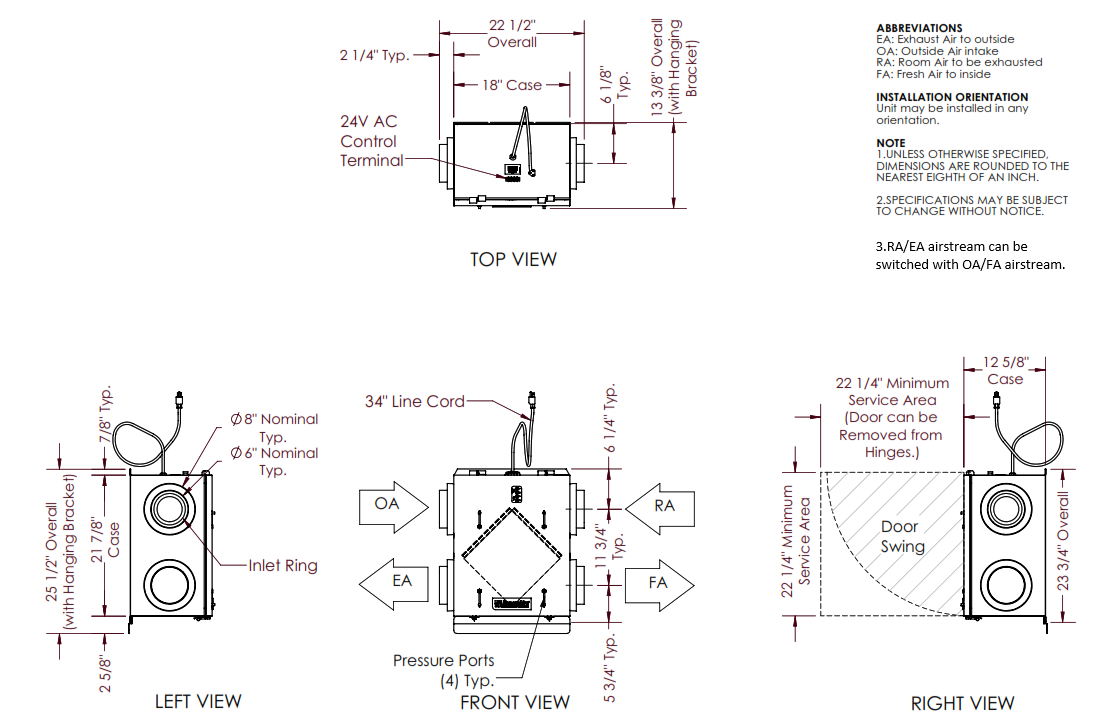

Dimensions for TRe200

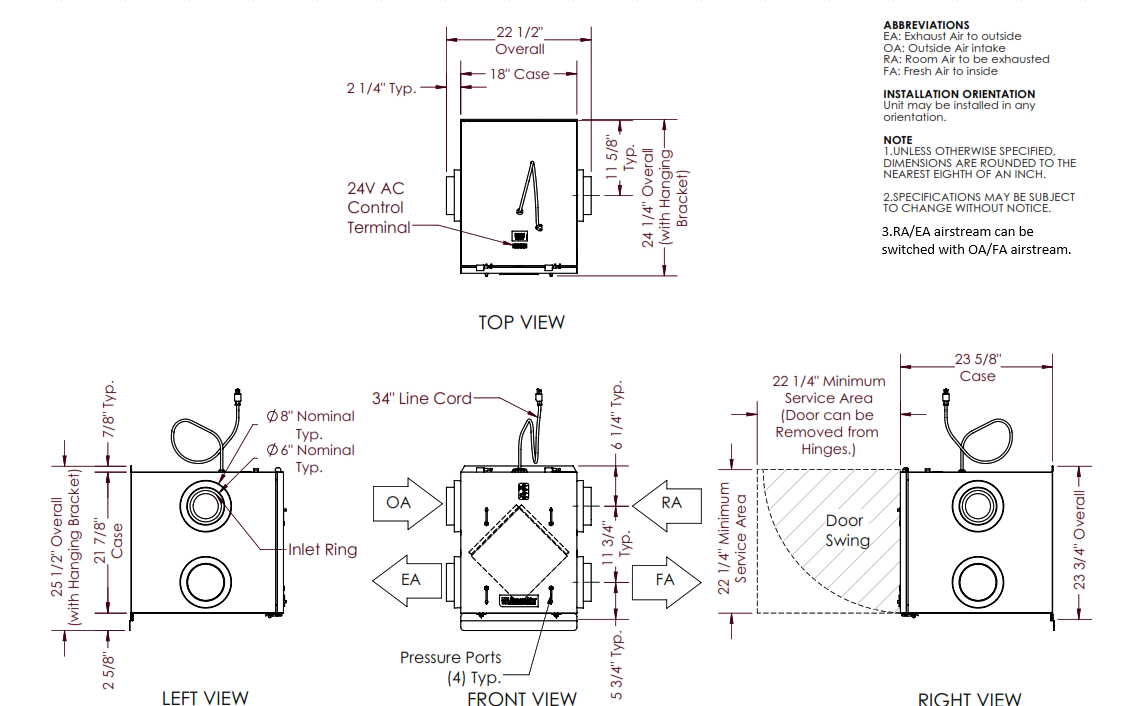

Dimensions for TRe300
Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.
Standard Accessories
| 990076 | Universal filters (10 packs of filter media) for TR90(G) thru TR300 | Submittal |
| 990447 | Universal filters (3 packs of filter media) for TR90(G) thru TR300 | Submittal |
| 990756 | MERV 13 filter (3 packs of filter) for TR90/TR90G ERV | |
| 990757 | MERV 13 filter (3 packs of filter) for TR130 ERV | |
| 990759 | MERV 13 filter (3 packs of filter) for TR200/TR300 ERV | |
| 990761 | MERV 13 filter (10 packs of filter) for TR90/TR90G ERV | |
| 990762 | MERV 13 filter (10 packs of filter) for TR130 ERV | |
| 990764 | MERV 13 filter (10 packs of filter) for TR200/TR300 ERV | |
| 990766 | MERV 13 filter (25 packs of filter) for TR90/TR90G ERV | |
| 990767 | MERV 13 filter (25 packs of filter) for TR130 ERV | |
| 990769 | MERV 13 filter (25 packs of filter) for TR200/TR300 ERV | |
| CAR | Metal Backdraft Damper | Submittal |
| BD6 | 6-inch Gravity Backdraft Damper for TR90(G) thru TR200 | |
| BD8 | 8-inch Gravity Backdraft Damper for TR90(G) thru TR300 | |
| FA8-G | 8-inch Galvanized Metal Wall Cap for TR90(G) thru TR300 | |
| FA8-P | 8-inch Paintable Metal Wall Cap for TR90(G) thru TR300 | |
| FT247 | 24/7 Programmable Fan Timer | Submittal |
| SCO2-W | Carbon Dioxide Control - Wall Mount | IOM |
| SFM | Percentage Timer Control with Furnace Interlock | IOM |
| SMC-C | MOTION OCCUPANCY CONTROL CEILING | IOM |
| SMC-W | MOTION OCCUPANCY CONTROL WALL | IOM |
| SPBL | Push Button Point-of-Use Control | IOM |
| SPTL | Percentage Timer Control | IOM |
| STC7D | Digital Time Clock | IOM |
| VB106 | 6-inch Brown Vinyl Wall Cap for TR90(G) thru TR200 | |
| VT8 | 8-inch Taupe Vinyl Wall Cap for TR90(G) thru TR300 | |
| VW106 | 6-inch White Vinyl Wall Cap for TR90(G) thru TR200 | |
| VW12x8 | 12x8-inch Louver to 8-inch Galvanized Metal Wall Cap for TR90(G) thru TR300 |
