MDX-ES24VK
MD6-ES24VK Product Kit

Model Features

  • 1 ES24V - Envirosense Ventilation Control (24V)
  • 1 MD4 - 4" or 1 MD5 - 5" or 1 MD6 - 6" or 1 MD8 - 8" Motorized Damper (24V)

Codes and Standards

  • ASHRAE 62.2 - 2010 & 2013
  • IRC 2012 & 2015

Model Overview

The MDX-ES24VK from S&P allows air to enter dwellings to meet building code and ventilation standards requirements through a motorized damper controlled by a 24V temperature/humidity monitoring control. The control can command the central HVAC blower to help distribute fresh air through the existing duct work if necessary.

The combination of the control and damper will help you meet ASHRAE 62.2 (2010/2013) and IRC (2012/2015) code standard requirements.

Part ID Round Duct
Size		 Voltage Frequency
(HZ)		 Current
(Amps)		 Power
(W)		 Insulation
Class		 Rated
Ambient (°C)		 Noise
(dB)
MD4 4 24V 60 0.3 6 A 40 ≤ 50
MD5 24V 60 6 A 40 ≤ 50
MD6 24V 60 6 A 40 ≤ 50
MD8 24V 60 6 A 40 ≤ 50
Model A B C
MD4 1-3/8 9-7/8 4
MD5 1-3/8 9-7/8 5
MD6 1-3/8 9-7/8 6
MD8 1-3/8 9-7/8 8

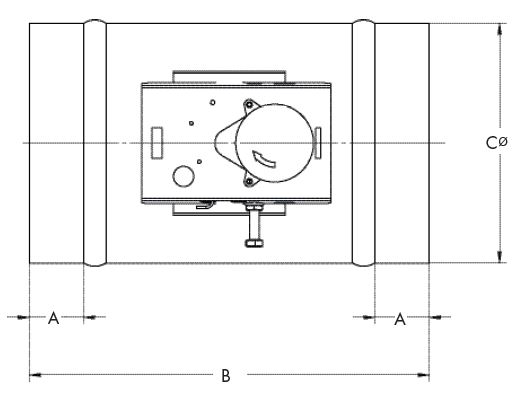

Dimensional Drawing (MDX)

MDX

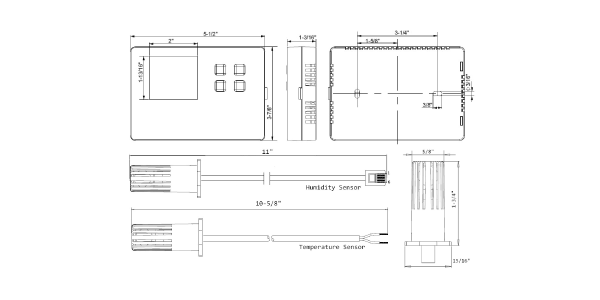

Dimensional Drawing (ES24V)

ES24V

MDX-ES24VK Flyer
Outside Air Solutions Brochure
Outside Air Solutions Flyer
Submittal
IOM
