Model Features

  • Tornado 14 ft. - 24 ft. diameter
  • Ecowatt® direct drive EC motor
  • Onboard IP65 VFD, factory assembled and programmed
  • Equipped with nylon 66 wingtips to redirect outward airflow into downward airflow
  • Extruded anodized aluminum blades
  • Lowers energy bills through evaporative cooling effect

Ecowatt

Model Overview

Tornado HVLS is a 5-Blade High Volume Low-Speed fan model featuring a direct drive ECM, IP65 motor. This fan is equipped with wingtips to redirect outward airflow downward. Through the destratification process, the THVLS fan series will lower energy bills providing evaporative cooling effect in summer and allow for uniform temperature in winter.

Due to an increase of lift created by the shape of the blade, Tornado fans can operate at lower speeds with less power consumption and produce a higher distribution of airflow.

5-year fan housing warranty

Fan
Diameter		 Area
Covered for
Destratification		 Max
Effective
Diameter for
Destratification		 Max
Effective
Diameter for
Cooling		 Installed
Weight
14 Ft.
(4.3 m)		 15,386 Ft2
(1,429.4 m2)		 140 Ft.
(43 m)		 70 Ft.
(21.5 m)		 236 lbs
16 Ft.
(4.9 m)		 20,096 Ft2
(1,866.9 m2)		 160 Ft.
(49 m)		 80 Ft.
(24.5 m)		 249 lbs
18 Ft.
(5.5 m)		 25,434 Ft2
(2,362.8 m2)		 180 Ft.
(55 m)		 90 Ft.
(27.5 m)		 277 lbs
20 Ft.
(6.1 m)		 31,400 Ft2
(2,917.1 m2)		 200 Ft.
(61 m)		 100 Ft.
(30.5 m)		 285 lbs
24 Ft.
(7.3 m)		 45,216 Ft2
(4,200.7 m2)		 240 Ft.
(73 m)		 120 Ft.
(36.5 m)		 306 lbs

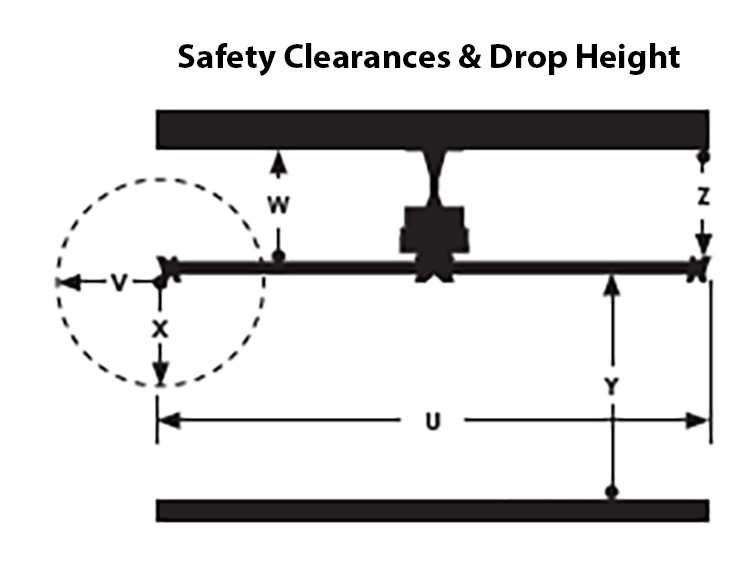

Dimensional Drawing for Tornado HVLS

Dimensional data is displayed in feet and inches.

Model Diameter
[U]		 Above
[W]		 Below
[X]		 Min
Blade
Height
[Y]
THVLS514 14 Ft.
(4.3 m)		 33" 26" 38"
THVLS516 16 Ft.
(4.9 m)		 33" 30" 40"
THVLS518 18 Ft.
(5.5 m)		 33" 33" 43"
THVLS520 20 Ft.
(6.1 m)		 33" 36" 45"
THVLS524 24 Ft.
(7.3 m)		 33" 44" 49"

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

THVLS Eco-Digital Submittal
THVLS Eco-Manual Submittal

Brochure
Ecowatt® Brochure
Submittal
IOM
