IFAB and IFEB
Low Profile Compact Centrifugal Jet Fan

Jet Fan Series

IFAB

Model Features

  • Low profile design for low ceiling heights
  • Thrust air at 12N or 11N
  • Air flow up to 1530 CFM
  • IFEB uses an EC motor for extra efficiency
  • IFAB uses an AC motor
  • cULus 705 Listed
  • Available in 60 Hz, 115V or 230v
  • Industry Best 5 year housing warranty, 1 year motor

cULus

Model Overview

The IFAB and IFEB low profile jet fans were designed with compactness and efficiency in mind. They are perfect for moving a great deal of air, to keep a parking garage safe, while fitting in a low ceiling. The efficient impellers keep ventilation costs down, and the low weight of the designs allow the fans to be installed rapidly and effortlessly. The IFAB uses AC impellers and the IFEB uses EC impellers. The IFEB improves the efficiency of the units by using the latest in EC motor technology.

5-year fan housing warranty, 1-year motor warranty

Performance

Model Thrust(N) Flow(CFM) Sound Level(LwA) Weight (lb)
IFAB 12 1530 87 42
IFEB 11 1350 87 42

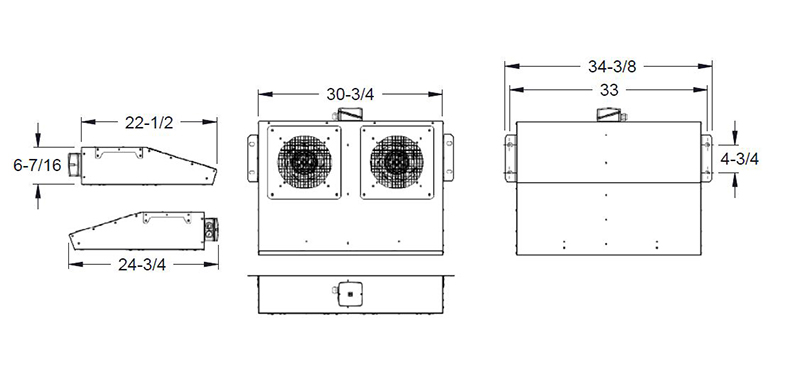

Dimensional drawing for IFAB models.

Note: Dimensional data is displayed in inches.

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Ventilation Gas Detectors Submittal IOM
Typical Specification Sheets IFAB
Typical Specification Sheets IFEB
Submittal
IOM
Flyer
Brochure
Description
IFAB (Centrifugal Jet Fan)
  • Indoor Garages
  • Indoor Parking Spaces
  • Warehouses
  • Large Enclosed Areas
