IFFT
IFFTe

Model Features

  • Thrust air between 13 and 90N
  • Air flow up to 5238 CFM
  • Available in 60 Hz; 208V, 230V, 460V and 575V
  • IFFTe available in 3PH 380~480V & IFFTe50/IFFTe30 available in 1PH 208~277V
  • IFFT uses an AC motor
  • IFFTe uses an EC motor for extra efficiency
  • Galvanized sheet steel housing
  • Industry Best 5 year housing warranty, 1 year motor
  • cULus Listed
  • Ecowatt® (IFFTe Model only)

cULus cULus

Model Overview

The IFFT and IFFTe centrifugal Jet Fans were designed with relative compactness and efficiency in mind. They are perfect for moving a great deal of air to keep a parking garage safe. The fans induce air flow to move dangerous gases out of enclosed garages and to dedicated ventilation points. The IFFT uses AC motors and the IFFTe uses EC motors. The IFFTe improves the efficiency of the units by using the latest in EC motor technology.

5-year fan housing warranty, 1-year motor warranty

IFFT Specifications

Model RPM Thrust
(N) 		Flow
(CFM) 		Motor Power
(kw) 		Sound Level
(LwA) 		Sound Pressure*
(LpA) 5ft
IFFT-50N 1650/855 47 / 13 3384 / 1754 1.5 / 0.22 95 / 79 83 / 66
IFFT-75N 1715/865 72 / 18 4709 / 2366 2.5 / 0.45 97 / 82 85 / 70
IFFT-100N 1715/865 90 / 23 5238 / 2631 2.5 / 0.45 98 / 82 86 / 69

IFFTe Specifications

Model RPM Thrust
(N) 		Flow
(CFM) 		Motor Power
(kw) 		Sound Level
(LwA) 		Sound Pressure*
(LpA) 5ft
IFFTe-30N 2000 25 3255 1.14 85 67
IFFTe-50N 1800 51 3692 1.5 96 85
IFFTe-50N-1PH 1800 51 3692 1.7 96 85
IFFTe-75N 1800 76 4942 3.0 97 86
IFFTe-100N 1800 94 5498 3.0 98 87

Sound Data

4 Pole
IFFT 63 125 250 500 1K 2K 4K 8K LwA Sones
50 63 75 87 90 90 88 82 75 95 35
75 64 77 88 91 93 90 83 80 97 40
100 69 79 91 92 94 90 84 79 98 43
IFFTe 63 125 250 500 1K 2K 4K 8K LwA Sones
30 74 90 82 79 79 80 72 65 85 22
50 65 75 89 92 92 90 85 78 96 40
75 65 77 89 92 94 91 85 81 97 43
100 70 79 92 93 95 91 85 80 98 45
8 Pole
IFFT 63 125 250 500 1K 2K 4K 8K LwA Sones
50 52 68 69 75 73 70 63 54 79 13
75 54 66 70 79 76 74 67 57 82 15
100 55 69 71 79 75 72 65 54 82 14

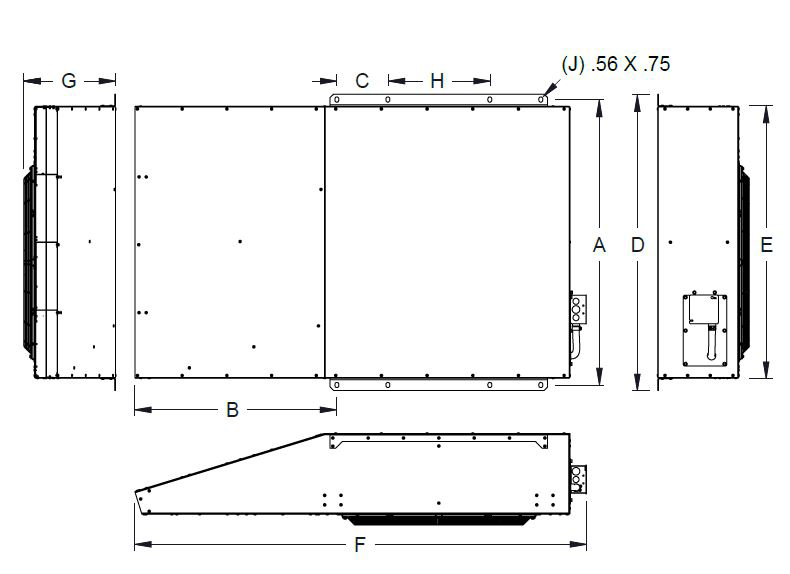

Dimensional drawing for IFFT models.

Note: Dimensional data is displayed in inches.

Model A B C D E F G H J WT(LB)
IFFT-30N 48-1/8 17-1/8 8-1/4 49-3/4 46-1/8 36-1/8 9-3/4 8-1/4 6 136
IFFTe-50N-1PH 33-7/16 22-1/2 10-13/16 35 31-5/8 50-7/8 15 - 6 168
IFFT-50N 33-7/16 22-1/2 10-13/16 35 31-5/8 50-7/8 12-13/16 - 6 168
IFFT-75N 41-5/16 29-1/4 7-3/8 42-7/8 39-1/2 65-3/8 14-13/16 14-3/4 8 265
IFFT-100N 41-5/16 29-1/4 7-3/8 42-7/8 39-1/2 65-3/8 14-13/16 14-3/4 8 265

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Ecowatt® Drive
Ventilation Gas Detectors Submittal IOM

Product Line Overview
Submittal
IOM
Flyer
Brochure

IFFT (Centrifugal Jet Fan)
IFFTe-30N

  • Indoor Garages
  • Indoor Parking Spaces
  • Warehouses
  • Large Enclosed Areas
