LCE and LCS Belt Drive Sidewall Propeller Exhaust/Supply Fans/small
Wall Mounted Fan Series
Model Features
- Exhaust air up to 40,000 CFM in high static pressure applications up to 1/2" w.g.
- Heavy-gauge galvanized steel panel
- Die formed galvanized steel blades
- Drives are sized for a minimum 150% of drive horsepower
- AMCA Air and Sound Licensed
- cULus 705 Listed
Model Overview
LCE (exhaust) and LCS (supply) are high capacity belt driven propeller fans rated from 3,000 to 40,000 CFM, with static pressure capability up to 5/8" W.G. Their primary application is the exhaust or supply of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry houses and greenhouses.
Wall mounting provides an easy, economical installation. Belt driven fans provide large volumes of air at low fan speeds and low noise levels and afford quick, easy performance adjustments. All necessary accessories are available to meet any need or specification.
LC's can be suspended from the ceiling to direct large volumes of air downward toward work centers, improving employee comfort and productivity.
When mounted in portable housings with OSHA guards, LC-P's can be used as a man-cooler and rolled to hot spots to provide needed employee relief from heat or fumes to help increase productivity.
2-year fan housing warranty, 1-year motor warranty
| Size | Max HP | CFM Range | Max SP | Avg. Ship Weight (lbs) |
| 20 | 3/4 HP | 2783 to 5630 | 1/2" | 85 |
| 24 | 1-1/2 HP | 2256 to 9774 | 5/8" | 90 |
| 30 | 1-1/2 HP | 4215 to 13339 | 1/2" | 100 |
| 36 | 2 HP | 5537 to 19165 | 1/2" | 105 |
| 42 | 2 HP | 5438 to 23755 | 3/8" | 110 |
| 48 | 2 HP | 6659 to 28209 | 3/8" | 125 |
| 54 | 3 HP | 10232 to 36809 | 1/2" | 240 |
| 60 | 3 HP | 16672 to 40855 | 3/8" | 285 |

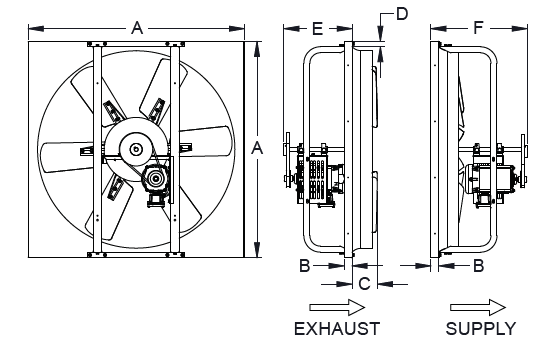

| Model Size | A | B | C | D | E | F | Damper O.D. Sq. Flange |
| 20 | 24" | 2" | 5" | 1-1/4" | 15" | 23" | 22-1/2" |
| 24 | 30" | 2" | 7-1/2" | 1-1/4" | 15" | 23" | 28-1/2" |
| 30 | 36" | 2" | 7-1/2" | 1-1/4" | 15" | 24" | 34-1/2" |
| 36 | 42" | 2" | 7-1/2" | 1-1/4" | 15" | 24" | 40-1/2" |
| 42 | 48" | 2" | 7-1/2" | 1-1/4" | 16" | 24" | 46-1/2" |
| 48 | 54" | 2" | 7-1/2" | 1-1/4" | 16" | 24" | 52-1/2" |
| 54 | 60" | 2" | 7-1/2" | 1-1/4" | 20" | 26" | 58-1/2" |
| 60 | 66" | 2" | 7-1/2" | 1-1/4" | 20" | 26" | 64-1/2" |
Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.
Standard Accessories
| Aluminum Construction | ||
| Center Pivot Motorized | ||
| Dampers for Exhaust and Supply | ||
| Disconnect Switches | ||
| Ecowatt® Drive | ||
| Extended Lube Lines | ||
| Factory Wiring | ||
| Filtered Wall Housing | Submittal | |
| Gravity Dampers for Exhaust and Supply | ||
| Motorized Dampers for Exhaust and Supply | ||
| Mounting Angles | ||
| Rainhoods/Weatherhoods | ||
| Ventilation Gas Detectors | Submittal | IOM |
- General / Clean Air
- Spark Resistant
