PW and KEDirect Drive Radial Blade Blower

Model Overview

The PW and KE Radial Blade Blowers feature a self-cleaning wheel. KE may be used on small kitchen hoods. These fans are used for exhaust applications where dirt, lint or other foreign material is in the air stream. They are used successfully in a variety of applications including, but not limited to, dust collection, mining applications, agricultural and industrial drying equipment, commercial laundry dying applications and hazardous fume exhaust. Open proof ball bearing motors in single and three phase voltages are standard. TEFC and explosion proof are also available.

1-year fan housing and motor warranty

Specifications

Dimensions

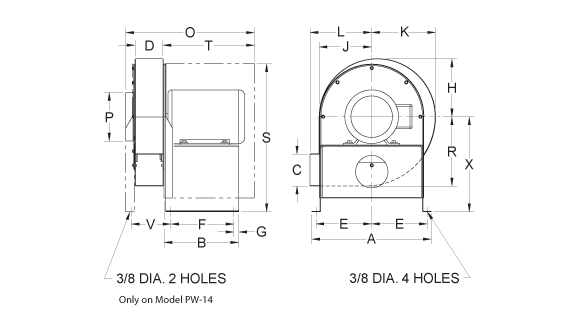

Model PW

Model Size	A	B	C	D	E	F	G
8	11"	8"	3"	3"	5"	7"	1/2"
9	12-1/8"	8"	3-1/2"	3-1/2"	5-5/8"	7"	1/2"
11	14-3/4"	9"	4"	3-1/2"	6-7/8"	7-1/2"	3/4"
12	17"	9"	5"	4"	8"	6-1/2"	3/4"
14	17-5/8"	11-1/4"	7-1/8"	5-3/4"	8"	9-9/16"	1"

Model Size	H	J	K	L	O	P	R
8	5-3/8"	4-7/8"	5-7/8"	5-7/8"	16"	4"	6-5/8"
9	6-3/8"	5-3/4"	6-7/8"	6-3/4"	20-3/4"	5"	7-1/2"
11	7-1/4"	6-1/2"	8"	7-5/8"	20-3/4"	6"	8-5/8"
12	8-1/4"	7-1/2"	9"	9-5/8"	20-1/8"	7"	10"
14	10-1/2"	9-5/8"	11-3/8"	11"	22"	8"	11-1/2"

Model Size	X	S	T	Y	Wheel	Bore
8	8-1/2"	13-1/8"	12"	-	7-3/4 x 2-1/4	1/2"
9	9-3/8"	14-5/8"	16"	-	9 x 2-3/4	1/2"
11	11-3/4"	18-1/4"	16"	-	10-5/8 x 3	5/8"
12	10-5/8"	18-3/8"	15"	-	12-1/2 x 3	7/8"
14	12-5/8"	21-1/2"	15"	7"	13-1/2 x 4-3/8	1-1/8"

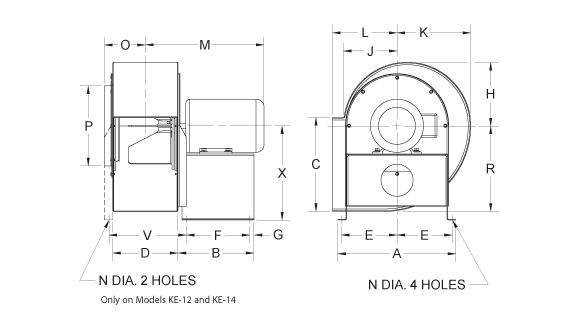

Model KE

Model Size	A	B	C	D	E	F	G
8	11"	8"	8-1/4"	5-3/8"	5"	7"	1/2"
9	12-1/8"	8"	10-3/4"	6-1/2"	5-5/8"	7"	1/2"
11	14-3/4"	9"	11-3/4"	8"	6-7/8"	7-1/2"	3/4"
12	16-3/8"	10-1/2"	13-1/4"	9-5/8"	7-3/8"	8-3/4"	7/8"
14	17-5/8"	10-1/2"	14-5/8"	10-3/4"	8"	8-3/4"	7/8"

Model Size	H	J	K	L	M 1	N	O
8	6"	4-5/8"	6-3/4"	6-7/8"	10-3/4"	3/8"	3-3/4"
9	6-3/4"	5-5/8"	7-3/4"	7-1/8"	11-3/4"	3/8"	4-5/16"
11	8"	6-3/4"	9-1/8"	8-1/8"	13-1/4"	3/8"	5-1/16"
12	10-1/8"	8-1/2"	11-1/2"	10-1/2"	15-3/16"	9/16"	6-3/8"
14	11-1/8"	9-3/8"	12-5/8"	11-3/8"	16-3/4"	9/16"	7"

Model Size	P	R	V	X	Wheel	Bore
8	8"	8"	-	8-1/2"	7-3/4 x 4	1/2"
9	9"	9-1/4"	-	9-3/8"	9 x 5	1/2"
11	10"	10-3/4"	-	11-3/4"	10-7/8 x 5-5/8	5/8"
12	13-1/4"	13-1/4"	11-1/8"	17"	12-1/2 x 7-1/2	7/8"
14	14-1/2"	14-5/8"	12-1/4"	17"	13-1/2 x 8-1/8	7/8"

1. Varies with motor frame size.
