CTB

Model Features

  • Rated up to 20,000 CFM in static pressure applications up to 2-1/2" w.g.
  • Motor and drives are located outside of the airstream
  • Ideal for applications where space is limited
  • Belt drives permit easy performance adjustments when needed
  • Continuously welded and epoxy painted steel housing
  • For indoor use only
  • AMCA Air and Sound Licensed
  • cULus 705 or 762 Listed

AMCA Air and Sound cULus

Model Overview

The Inline Tubular Centrifugal (CTB) series offers one of the widest ranges of sizes, horsepower, and performance in the industry. Models CTB are high capacity belt drive tubular centrifugal fans rated from 300 to 20,000 CFM, with static pressure capability up to 2-1/2". These fans are designed for commercial and industrial in-line applications that demand quiet, efficient and reliable air movement. They are used to exhaust air from or supply air to commercial and industrial applications, such as, general building ventilation, enclosed garages, paint spray booths, heat and smoke ventilation systems, restaurant and kitchen exhaust ventilation, historical buildings with limited roof space and restrictive duct lengths, and other applications where air is moved through a duct system against moderate static pressure.

The CTBRHUL is specifically suited for restaurant exhaust where roof space is limited; sidewall mounted fans are prohibited, or duct lengths are restricted. The CTBRHUL is also perfect in areas where extreme weather and outside air temperatures are a concern when maintenance on the fan is needed.

The centrifugal wheel is designed to provide higher efficiencies and lower sound levels than propeller type fans when used in medium pressure duct systems. Tubular centrifugal fans can be mounted in any position providing for installations in the smallest possible space.

2-year fan housing warranty, 1-year motor warranty

Size CFM Range Max SP
9 300 to 350 2"
11 500 to 1,950 2-1/4"
13 600 to 2,900 2"
15 900 to 3,600 2-1/2"
18 1,200 to 5,700 2-1/2"
22 1,200 to 6,800 2"
24 2,000 to 10,000 2-1/2"
30 2,250 to 14,250 2-1/2"
36 4,600 to 17,700 1-3/4"
42 8,300 to 20,300 1-1/4"

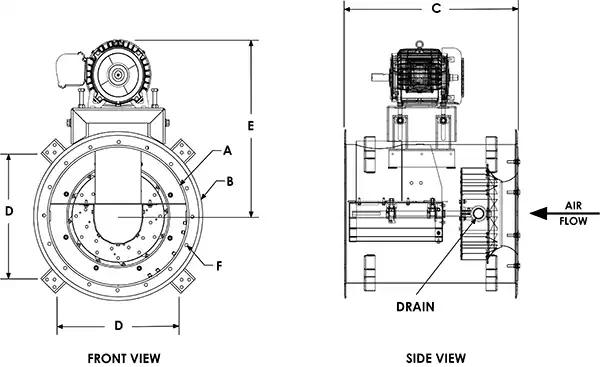

Dimensional drawing for the CTB models and all its variations.

Dimensional data is displayed in inches.

Size I.D.
A		 O.D.
B		 Length
C		 D B.C.D. E (Max)
9 18-3/8 22-1/2 23 17-15/16 19-3/4 24
11 18-3/8 22-1/2 23 17-15/16 19-3/4 24
13 20-3/8 24-1/2 24-1/2 18-3/8 21-3/4 25
15 24-3/8 28-9/16 25-1/2 21-1/4 25-3/4 29
18 30-3/8 34-9/16 31 25-1/2 32 31
22 36-3/8 40-9/16 35-1/2 29-13/16 38 33-1/2
24 42-1/2 47 42 34-1/8 44-1/4 34-1/2
30 48-1/2 53 48-1/2 38-3/8 50-3/4 40-1/2
36 55 59-1/2 54 43 57-1/4 44
42 61 65-1/2 59-1/2 47-1/4 63-1/4 45

Highlighted cells indicate that the motor may extend past unit size.

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Hanging Bracket/Mounting Foot with Hanging Spring Isolator
Mounting Rails
Inlet Guard
Outlet Guard
Inspection Door
Companion Flanges
Belt Guard
Motor Cover
Shaft Seal
Disconnect Switches
Rubber Isolator
Spring Isolator

Product Line Overview
General Catalogue Section
Typical Specification Sheet
Submittal
IOM
Mounting Diagram
